Choosing blow bar material: high chrome, martensitic or manganese

Almost every conversation about blow bars starts in the same place: someone wants the bar that lasts longest. It is a reasonable question with an unhelpful answer, because the alloy that lasts longest in a limestone quarry is often the one that fails fastest on a demolition site.

Wear parts fail in two fundamentally different ways. They wear away gradually through abrasion, or they break through impact. Hardness resists the first and works against the second. Every blow bar alloy is a position on that trade-off.

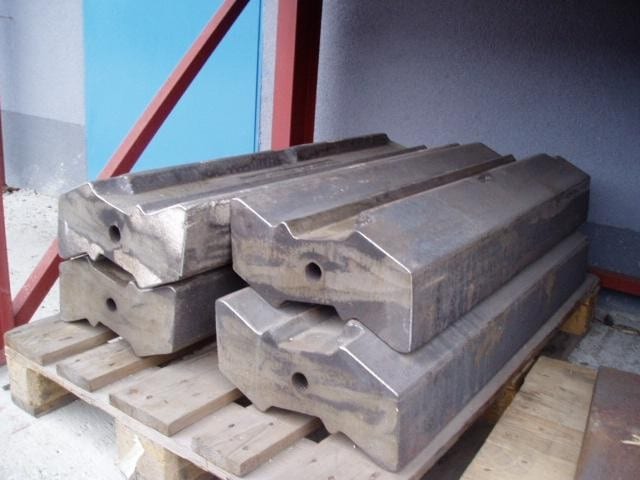

The three families

High chrome iron

High chrome irons, covered by ASTM A532 Class II and III, carry hard chromium carbides in a martensitic matrix, and reach 58 to 64 HRC after heat treatment. That carbide structure is extremely good at resisting sliding abrasion, which is why high chrome dominates in clean, abrasive rock.

The weakness is fracture toughness. Chromium carbide is hard and brittle. Drop a length of rebar or an excavator tooth into the chamber and a high chrome bar can chip a corner or crack across the section.

Austenitic manganese steel

Manganese steel, known as Hadfield steel and covered by ASTM A128, behaves in a way that surprises people the first time they handle a new casting. It arrives soft, around 200 to 229 BHN, and only develops its wear face once it is being struck. Under impact the surface work-hardens past 500 BHN while the core stays tough and ductile.

That combination is exactly what you want when uncrushable material is a fact of life. A manganese bar hit by rebar deforms rather than fracturing. In clean abrasive rock, though, it wears faster than high chrome because the abrasion is not delivering the impact energy the alloy needs to harden.

Martensitic steel

Low-alloy martensitic grades sit between the two at roughly 45 to 52 HRC. They are tougher than high chrome and harder than as-supplied manganese steel. Where the duty genuinely mixes impact and abrasion, as much recycled concrete work does, a martensitic bar often gives the best real-world result even though it wins neither category outright.

Matching alloy to feed

Read your failure mode first

Before changing alloy, look at how your current bars come off the rotor. The answer is usually written on the worn parts.

• Worn smoothly to the mounting area. Abrasion is the limit. A harder alloy will buy you tonnage.
• Chipped corners or cracked sections. Impact is the limit. A harder alloy will make it worse; move toward manganese.
• Cracks starting at the mounting seat. This is usually a fit or balance problem rather than an alloy problem. Check the pocket and the set weight matching before you change grade.
• One bar far more worn than the others. The set is out of balance, or the apron gap is uneven.

Change one variable at a time

The most common mistake we see is changing alloy, apron setting and feed source in the same week and then trying to work out what helped. Establish a baseline in tonnes per set on your own machine, change one thing, and measure again.

It is also worth being honest about which cost you are optimising. If a change-out takes a shift, the labour and lost production usually dwarf the difference in casting price between two grades.

When more than one grade makes sense

Plants that run seasonal or contract-driven feed changes sometimes hold two sets in two alloys and swap according to the job. Because we cast the same profile in high chrome, martensitic and manganese steel, this is straightforward to arrange, because the bars are interchangeable in the rotor.

If you are unsure where to start, send us the machine model, a description of the feed and a photograph of a worn bar. The wear pattern usually tells us more than the specification does.
